Powerful and Versatile Inline Duct Fan

With a maximum 350 CFM airflow and a quick fan speed of 2500 RPM, the IVC-001W delivers more efficient ventilation, deodorization, dehumidification, and temperature regulation.

App Control from Anywhere

Through 2.4GHz WiFi connection, you can control and monitor this inline duct fan on the INKBIRD app, where you can also set limits, and view or export historical temperature and humidity data.

Automatic/Manual/Timer/Shutdown Modes

This smart inline duct fan offers 4 operation modes - Automatic/Manual/Timer/Shutdown. With the Timer mode, you can schedule up to 6 separate run times per day, with different wind speeds from 0 to 10.

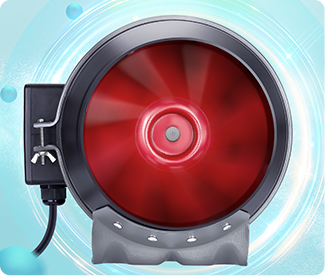

Efficient EC Motor in Robust Housing

This fan features a compact yet powerful EC motor that helps you save on both energy and costs. Plus, it's housing and blades are made of durable ABS plastic for long-lasting use.

How Does the Inline Duct Fan Work

The inline duct fan increases airflow and heat dissipation to:1. Maintain a clean air environment;2. Maintain adequate airflow in all areas. Not only does it have basic temperature and humidity triggers, but it also guides air through your target location. With a wind speed adjustment range of 0 to 10, it perfectly balances air volume, wind speed, and noise levels to suit your indoor or growing environment.

Quiet Operation The fan operates at just 32 dB, which is as quiet as a whisper.

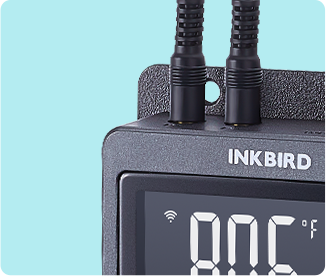

Dual Fan Control The included controller can connect and control two INKBIRD fans at the same time.
Child Lock & Eco Mode It supports child lock to prevent misoperation and ECO mode to save power and cost.

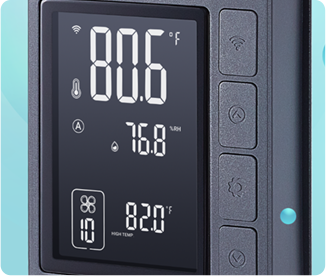

High-Definition VA Screen The screen clearly displays fan status, current temperature, and humidity even in low-light conditions.

Product Overview



Specs

Model:

IVC-001W

Duct Fan Power:
110~240VAC 50/60Hz
Controller Power:
DC 24V
Duct Fan Size:
6 inches
Airflow:
350CFM
Fan Speed:
2500 RPM
Noise:
32dB-A
Temperature Display Accuracy:
0.1℃/℉(<100℃/℉),1℃/℉(>=100℃/℉)
Humidity Display Accuracy:
0.1%RH
Relative Humidity Range:
0~100%RH
Relative Humidity Accuracy:
Typical value ±2%RH  (at 25℃)
Temperature Range:
-40℉~212℉ / -40℃~100℃
Temperature Measurement Accuracy:
Typical value ±0.3℃/±0.5℉
Wind Speed Adjustment Range:
0~10 grades
Working Temperature:
Room Temperature
Storage Condition:
Temperature:32℉~140℉/0℃~60℃

Humidity:20~80%RH (unfroze or condensation state)
AC Cable Length:
4.92ft / 1.5 m
DC Cable Length:
7.87ft / 2.4 m
Probe Length:
2500 ±30 mm
Warranty:
2 years
Package Contents:

Duct Fan Unit:

Inline Duct Fan *1, Duct Clamp *2,

Wire Tie *6, Wire Tie Mount *6,

Wood Screws *6, Wall Screws (Wall Hang) *6

Controller Unit:

Smart Temperature Humidity Controller *1,

Temperature-Humidity Probe *1,

Machine Screws (Wall Mount) *2,

Wood Screw (Wall Mount) *2,

Wood Screws (Wall Hang) *2

Show More


Frequently Asked Questions

What is an inline duct fan?

Inline duct fans, often referred to as inline fans or centrifugal fans, are mechanical ventilation devices that serve multiple purposes. They can cool, heat, filter, and humidify the air in a space to help improve indoor air quality and circulation. These fans are ideal for grow rooms, commercial warehouses, office buildings, basements, attics, and other spaces that need to maintain specific temperature and humidity levels.

Does IVC-001W run all the time?

The operation of IVC-001W, whether it runs all the time or just occasionally, depends on the control system and your needs of the ventilation.

Can IVC-001W be used for kitchen grease removal?

Yes, the IVC-001W is suitable for kitchen grease exhaust. Make sure the fan size is appropriate for your kitchen's ventilation needs, and do not to expose it to temperatures over 140℉/60℃ for long periods of time.

Is the IVC-001W waterproof?

No, the IVC-001W is rated IP4X for dust and water resistance, so it is not waterproof.
