Product details
Product features
- Support reading with Centigrade or Fahrenheit unit
- Dual display window, be able to display measured temperature and set temperature at the same time
- Simplify operational processes and you don't need to operate more steps if you want to set the definite value
- High accuracy of displaying and controlling. Manual and Auto turning are available
- 1 Year Warranty
Specification
- Front Panel Dimension: DIN 48mm(W)X48mm(L)
- Power Supply Voltage: AC 100-240V 50/60Hz
- Operating voltage range： 85～110% Rated voltage
- Power Consumption： Approx. 5VA（100～240VAC）
- Character: PV: 4 digital 9.9mm height Red LED Letters
- SV: 4 digital 8mm height Green LED Letters
- Display Accuracy: ±0.2%FS 0.1ºC（＜1000ºC）；1ºC（≥1000ºC）
- Period of Sampling： 0.5S
- Temperature Compensation： 0-50ºC
- Life expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
- Weight: Approx. 140g
- Environmental Conditions: -10～55ºC（no icy or condensation）, RH 35-85% Humidity
- Storage Temperature: -25～65ºC（no icy or condensation）
- Data Storage: 10year Cutout size: 45x45mm
- Mounting Method: Flush mounting and screw terminals
K-Type Thermocouple Temperature Sensing For Temperature Controller
- Temperature rang :0-400 C
- Sensor Dia: 4.5mm
- Cable Length: 2m(6.6ft)
- External Shielding: Insulated Shielding
- Internal Insulation:Fiberglass
25A SSR SOLID STATE RELAY for temperature controller
Specifications:
Load Voltage: 24-380VAC
Load Current: 25A
Input Voltage: DC 3-32V
40A SSR SOLID STATE RELAY for temperature controller
Specifications:
Load Voltage: 24-380VAC
Load Current: 40A
Input Voltage: DC 3-32V
Pacakge:

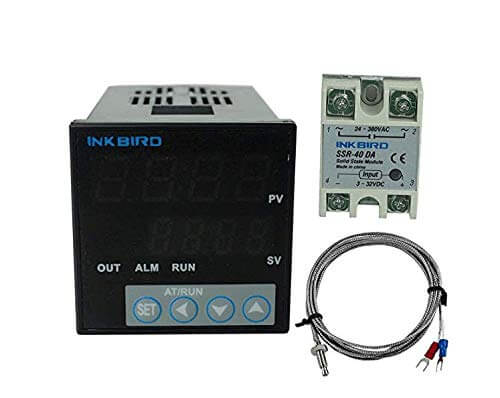

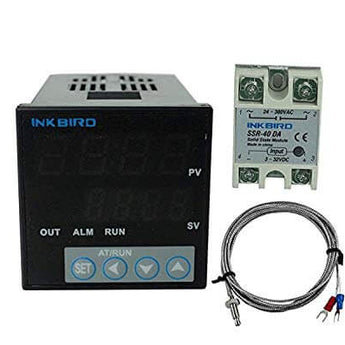

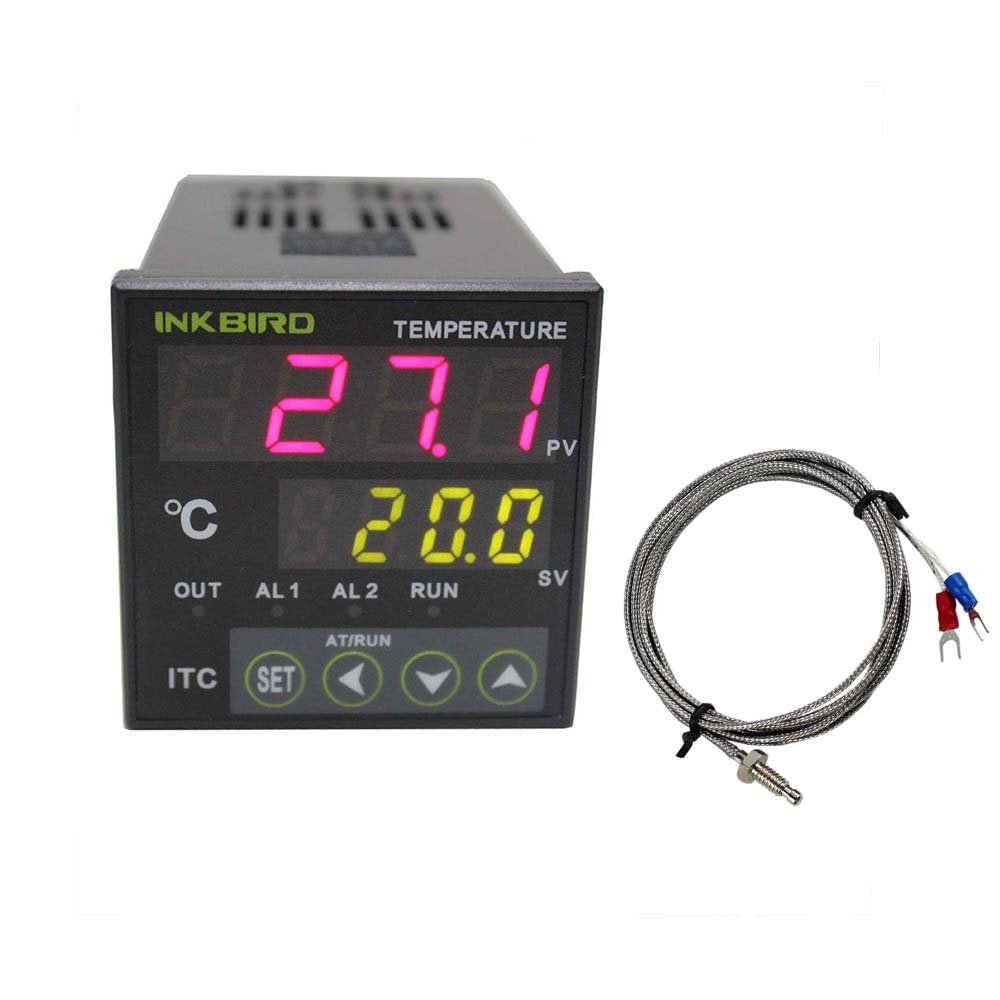

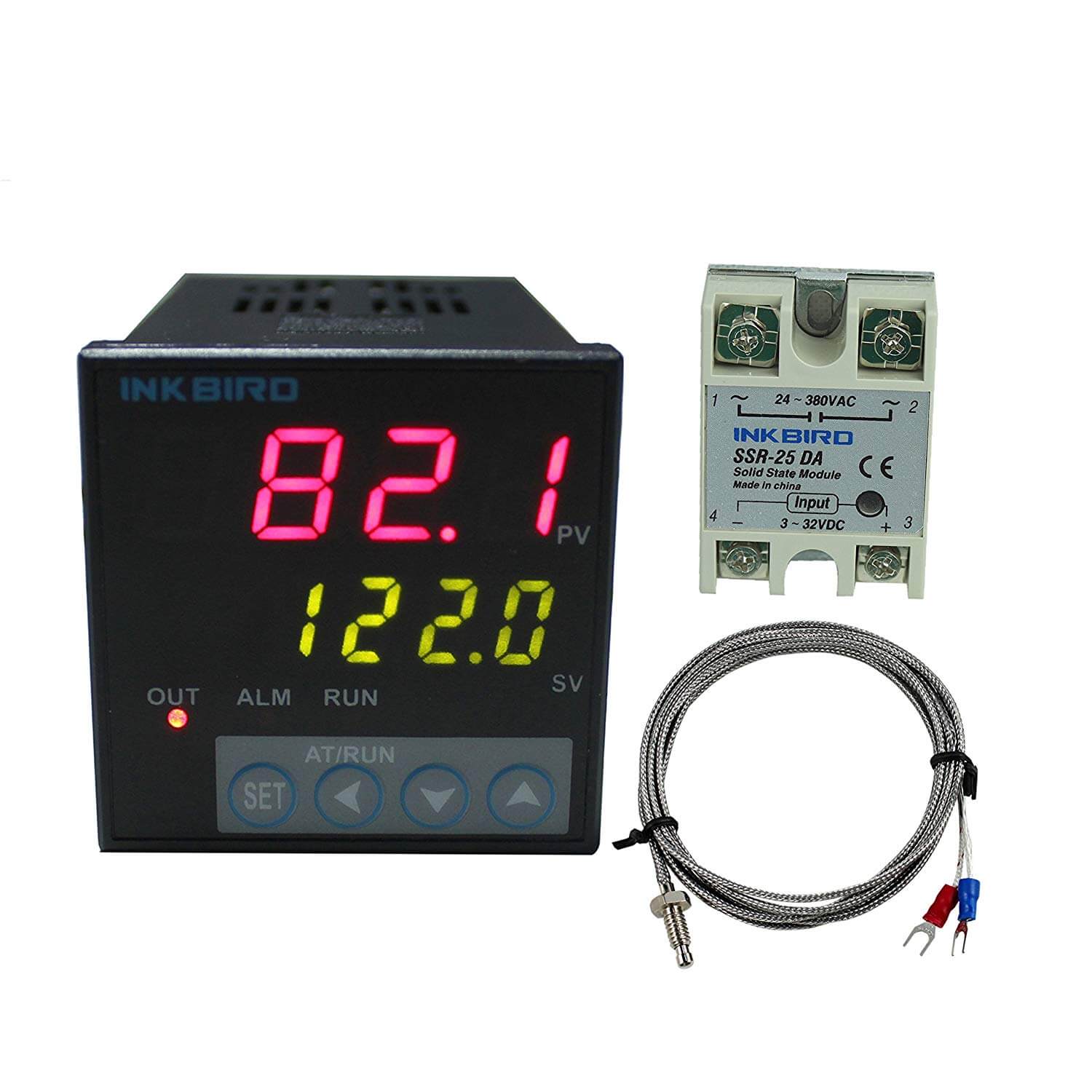

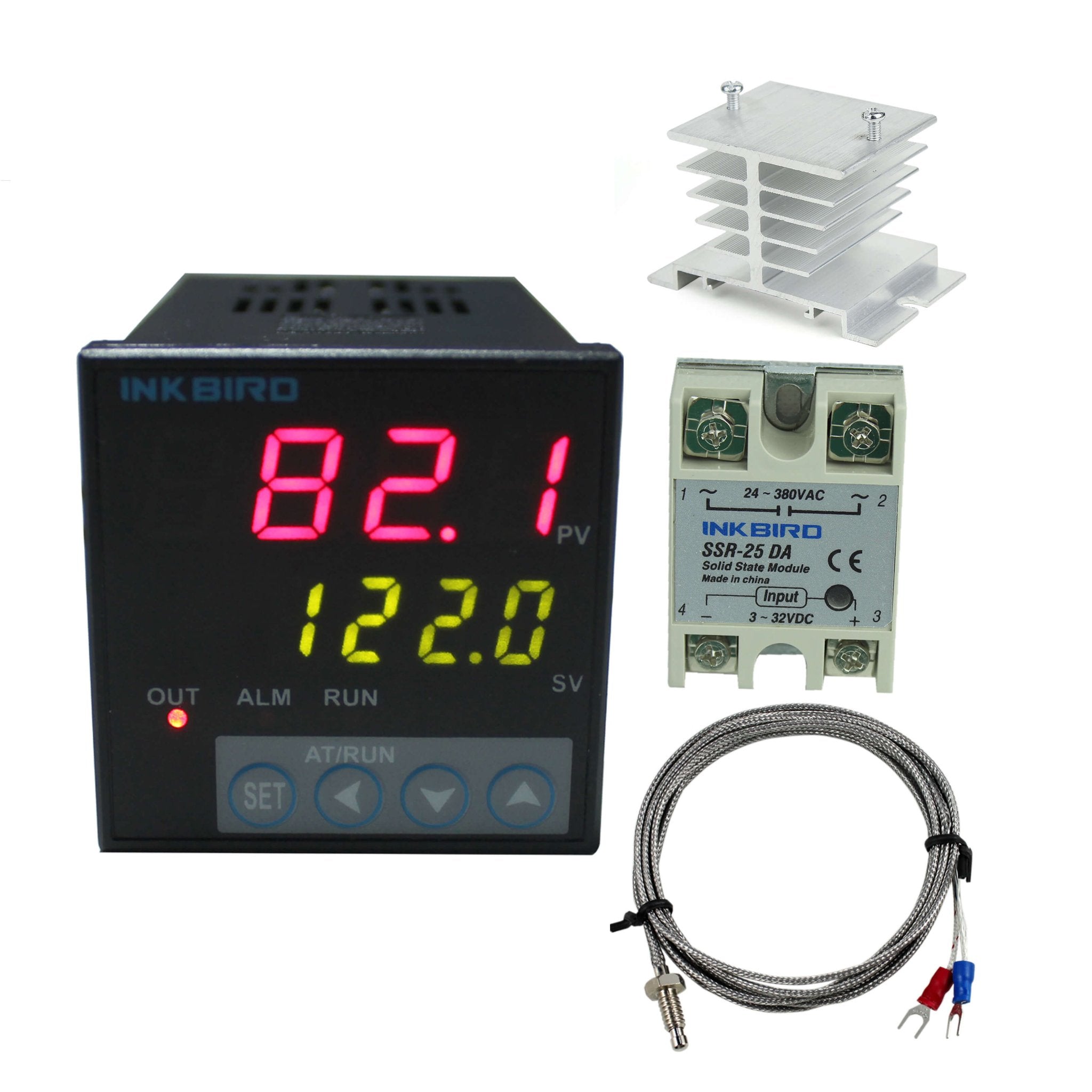

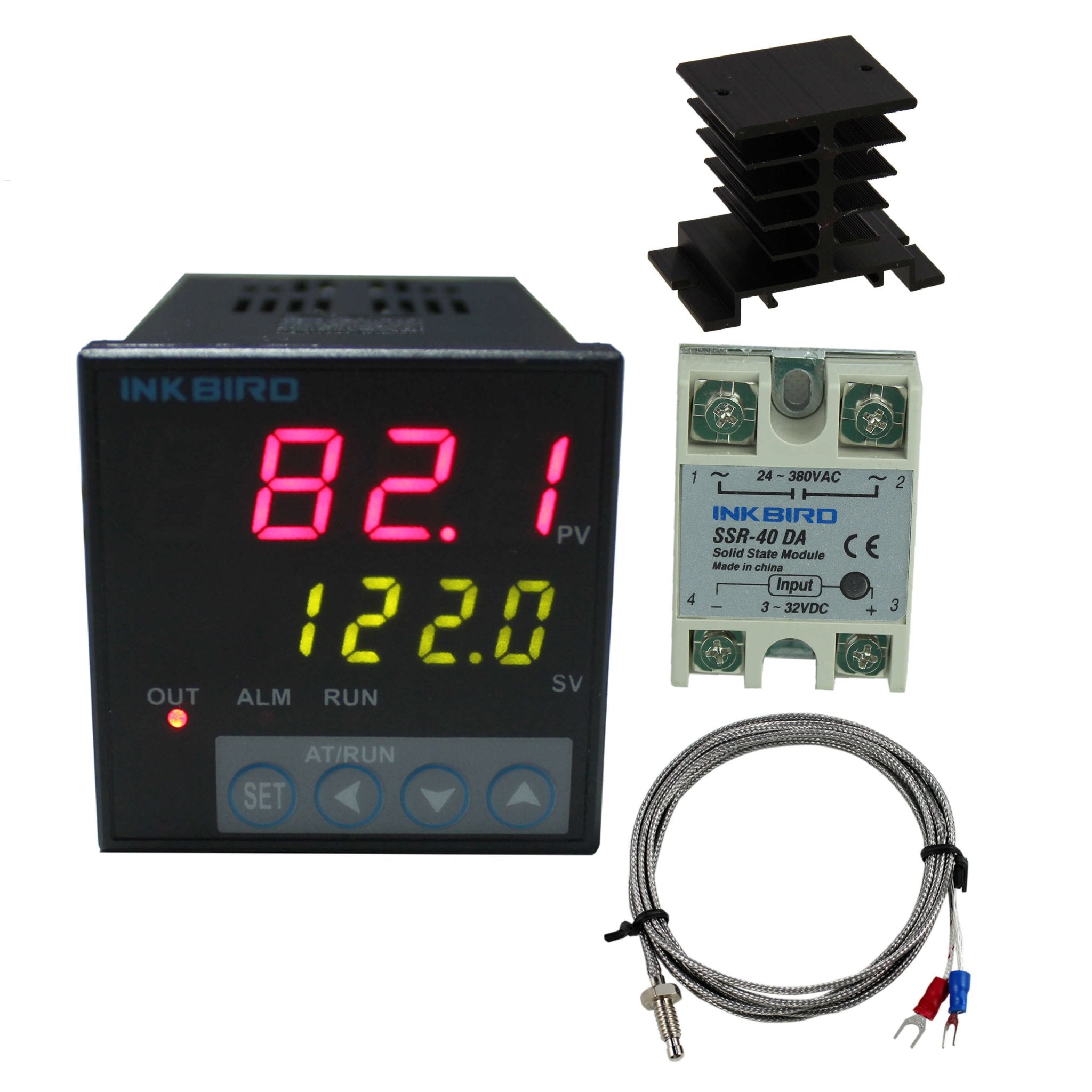

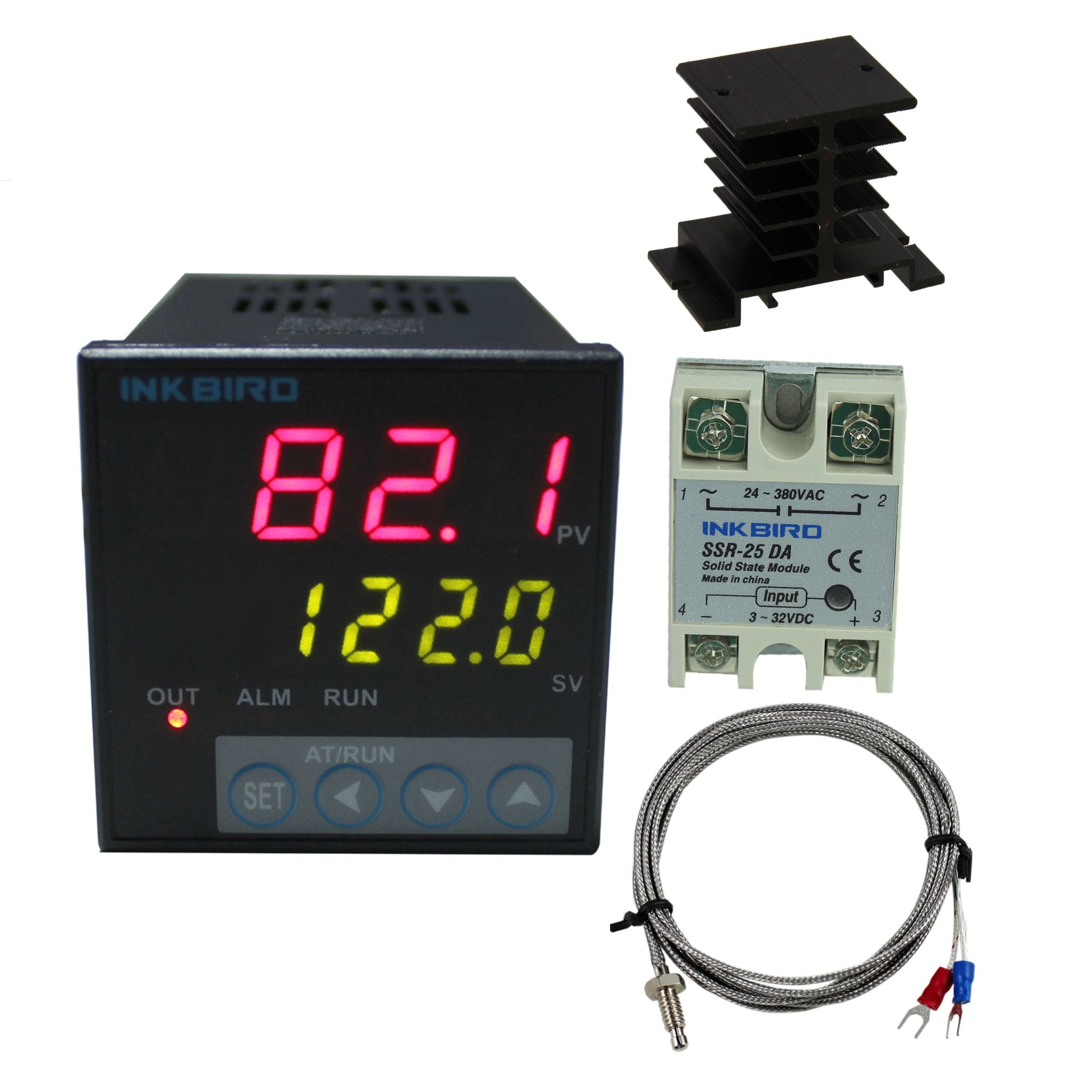

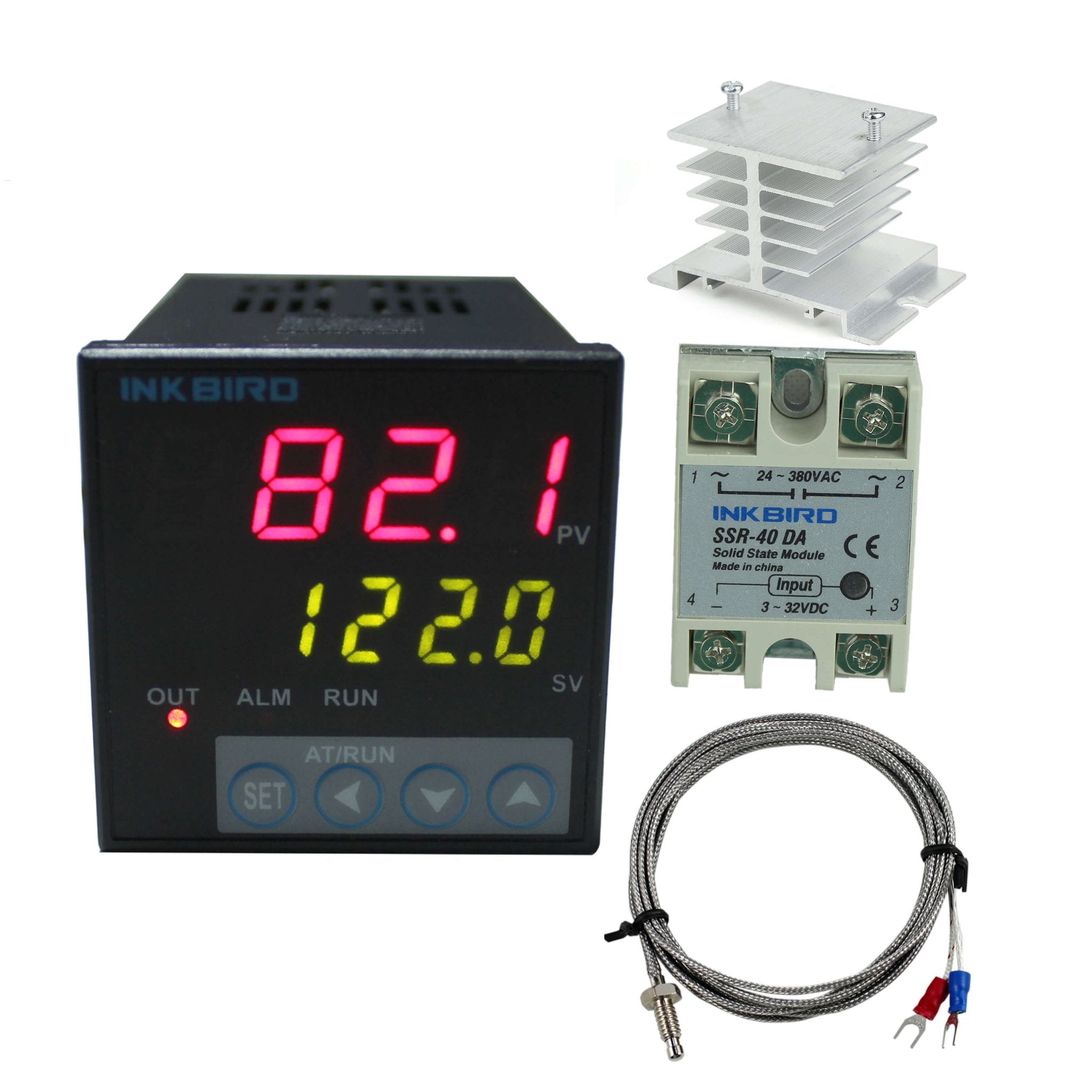

1x Inkbird ITC-106VH Controller
1x Mounting bracket
1 x K sensor
1x Manual
1x 25A/40A SSR (optional)
1x Black/White Heat Sink (optional)
